Typhoon 10HP 3PH Modular Dust Collector
Typhoon 10HP 3PH Modular Dust Collector
Regular price
$5,399.00
Regular price
Sale price
$5,399.00
Unit price
per
Exact shipping calculated after quote submission.

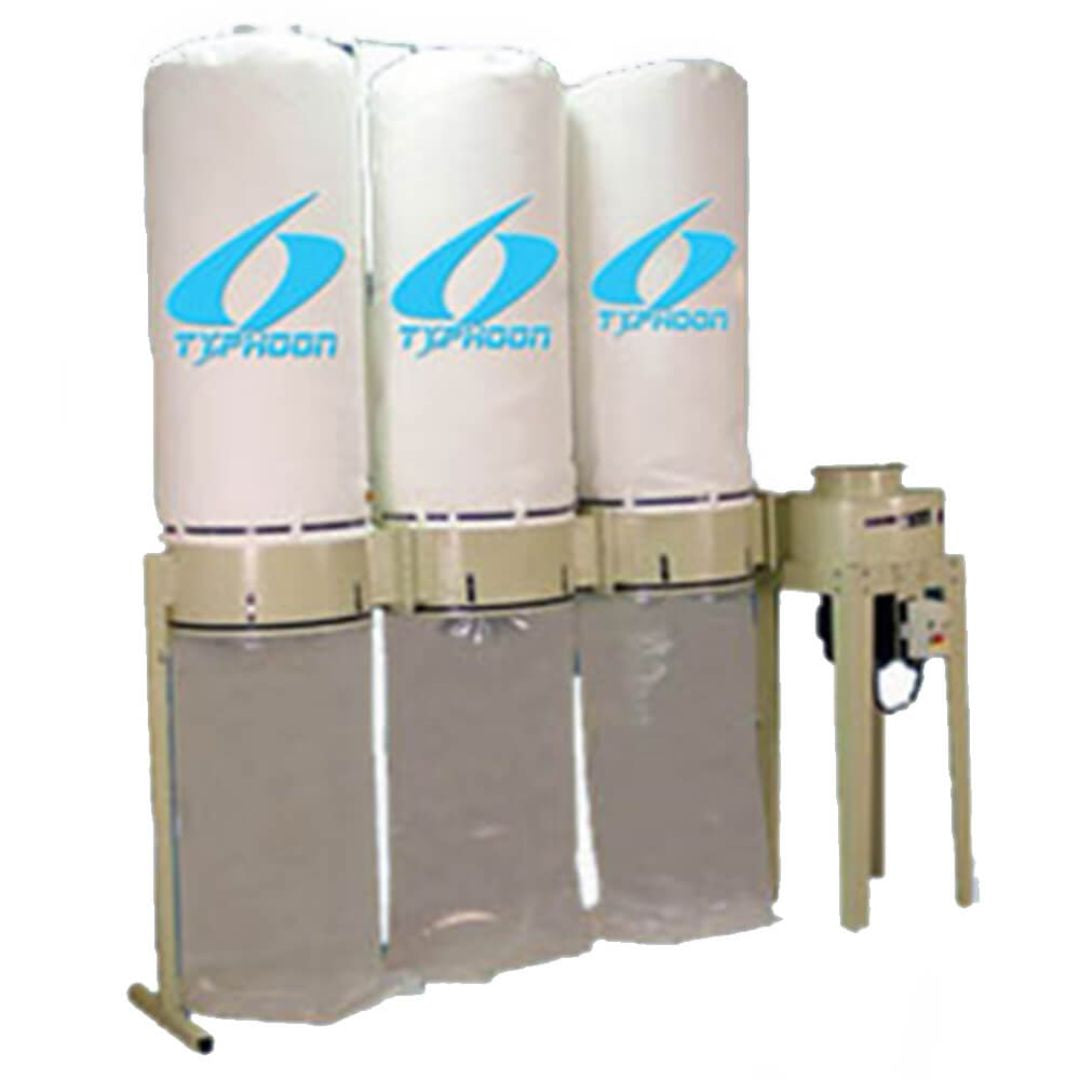

The DC-3100 modular dust collector is powered by a 10 horsepower motor and comes equipped with 3 1-micron filter bags. It features a 99 square foot filter area with 36 cubic feet of storage capacity measuring 112 inches tall by 110 inches wide by 32 inches deep. This three-phase dust collector has 27 amps at 220 volts. Modular ring design enables increased storage and filter capacity. Magnetic starter included. Please refer to the comparison chart below for specifications on all modular dust collector models.
Model: DC-3100
Couldn't load pickup availability
| Typhoon 10HP 3PH Modular Dust Collector | 20HP 3PH Modular Dust Collector | 25HP 3PH Modular Dust Collector | 5HP 3PH Straight Dust Collector | |
|---|---|---|---|---|
| Amps | 27A @ 220V | 49A @ 220V | 60A @ 220V | 1PH: 27A @ 220V 3PH: 17A @ 220V |
| Cfm | 5000 | 7500 | 10000 | 3075 |
| Dimensions | 112″ x 110″ x 32″ | 112″ x 156″ x 50″ | 112″ x 183″ x 50″ | 112" x 81" x 32" |
| Fan rpm | 3450 | 1725 | 27″ | 3450 |
| Fan size | 14″ | 26″ | 1725 | 13" |
| Filter-bags | 3 | 4 | 5 | 2 |
| Filter area | 99 | 132 | 165 | 66 |
| Horsepower | 10HP | 20HP | 25HP | 5HP |
| Inlet-size | 12″ | 16″ | 18″ | 10" |
| Phase | 3 | 3 | 3 | 1 or 3 |
| Storage capacity | 36 | 48 | 60 | 24 |
| Weight | 520 lbs | 1000 lbs | 1200 lbs | 425 lbs |
