25HP 3PH Dust Blower
25HP 3PH Dust Blower
Regular price
$7,499.00
Regular price
Sale price
$7,499.00
Unit price
per
Exact shipping calculated after quote submission.

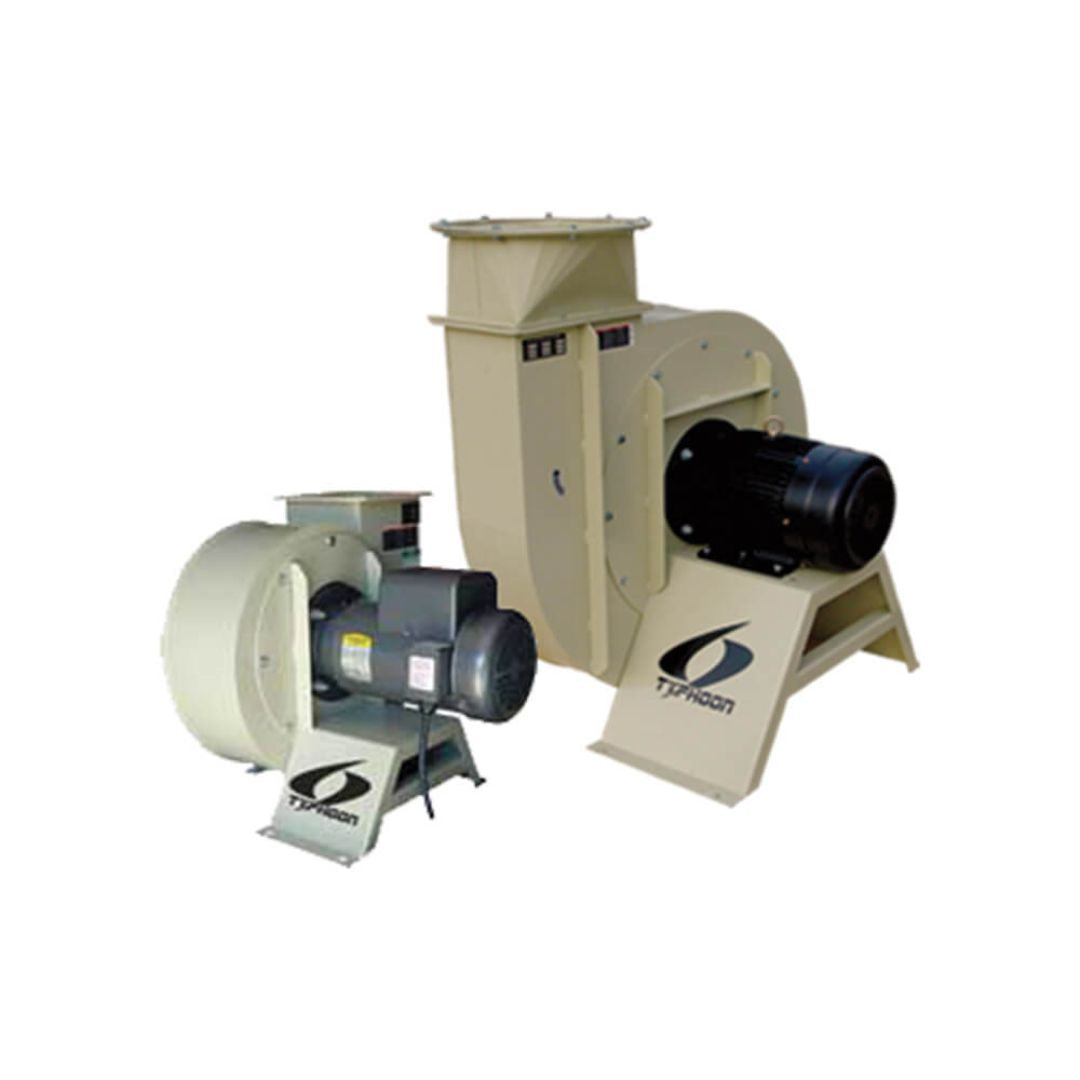

Our dust blowers are made up of a heavy duty dynamically balanced vaneaxial fan with safety guards on all inlets. The steel impeller is mounted directly to the shaft of the stand-mounted motor. Motors are available from 5 to 25 horsepower, 3 phase electric and have options for magnetic starters and remote control. Single phase electric motors are available for blowers up to 7.5 horsepower. Magnetic starter included. See comparison chart below for specifications.
Model: DB-250
Couldn't load pickup availability
| 25HP 3PH Dust Blower | 10HP 3PH Dust Collection Blower | 15HP 3PH Dust Collection Blower, 7900CFM | 20HP 3PH Dust Blower | 5HP 3PH Dust Blower | 7.5HP 3PH Dust Blower | |
|---|---|---|---|---|---|---|
| Amps | 60A @ 220V | 27A @ 220V | 37A @ 220V | 49A @ 220V | 1PH: 27A @ 220V 3PH: 17A @ 220V | 1PH: 38A @ 220V 3PH: 20A @ 220V |
| Cfm | 10350 | 6350 | 7900 | 8375 | 3200 | 4700 |
| Fan rpm | 1725 | 3450 | 1725 | 1725 | 3450 | 3450 |
| Fan size | 27" | 14" | 25" | 26" | 13" | 13.5" |
| Horsepower | 25HP | 10HP | 15HP | 20HP | 5HP | 7.5HP |
| Inlet-size | 18" | 12" | 14" | 16" | 10" | 12" |
| Outlet size | 20" | 14" | 16" | 18" | 12" | 14" |
| Phase | 3 | 3 | 3 | 3 | 1 or 3 | 1 or 3 |
| Weight | 850 lbs | 360 lbs | 750 lbs | 810 lbs | 280 lbs | 330lbs |
