Typhoon 15HP 3PH Modular Dust Collector, NFPA664 CFM Rating
Typhoon 15HP 3PH Modular Dust Collector, NFPA664 CFM Rating
Regular price
$8,799.00
Regular price
Sale price
$8,799.00
Unit price
per
Exact shipping calculated after quote submission.

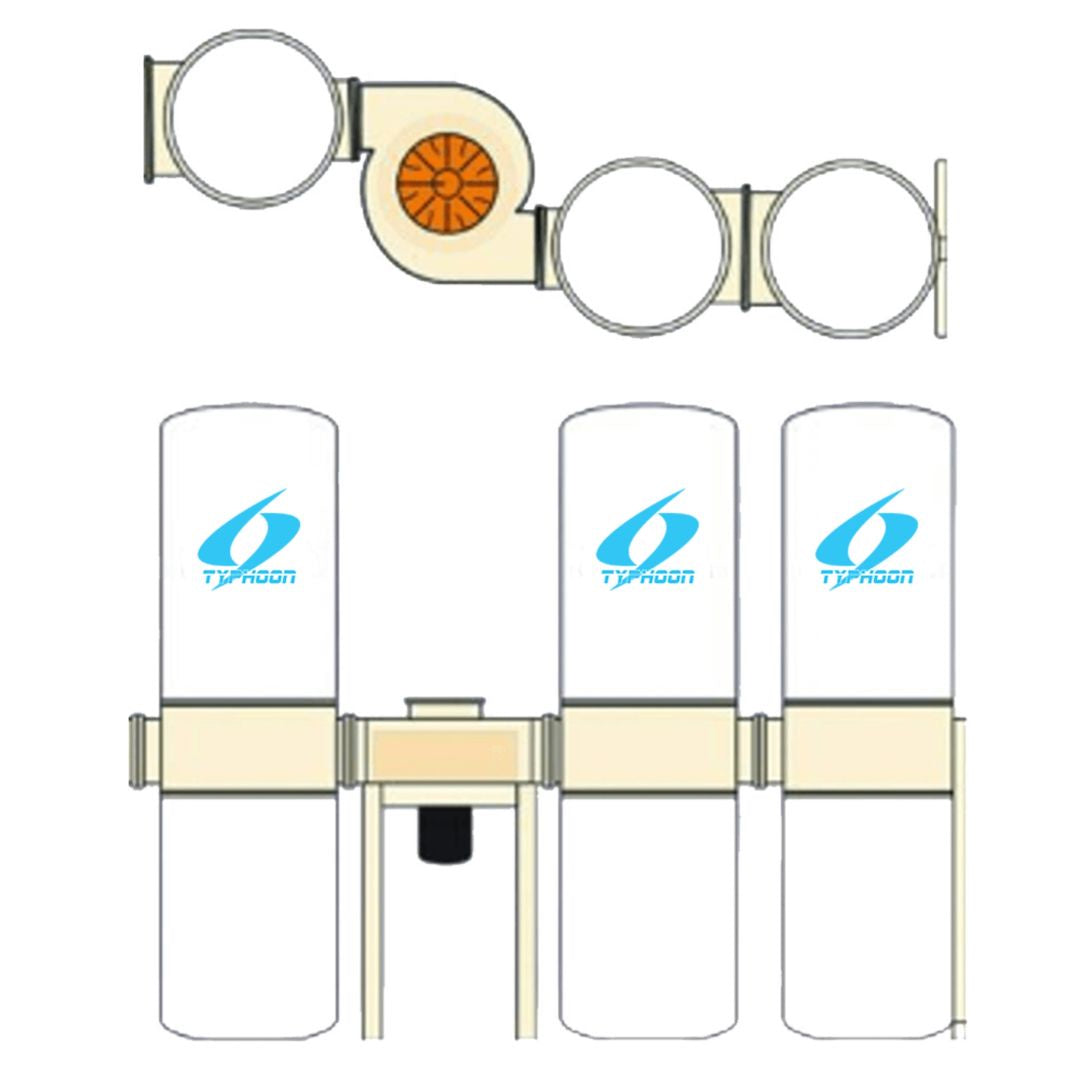

The DC-3150S3 modular dust collector is powered by a 15 horsepower motor and comes equipped with 3 1-micron filter bags. It features a 99 square foot filter area with 36 cubic feet of storage capacity measuring 112 inches tall by 130 inches wide by 50 inches deep. This three-phase dust collector has 37 amps at 220 volts with 1725 RPM on a 25 inch fan. Modular ring design enables increased storage and filter capacity. Magnetic starter included.
Model: DC-3150S3
Couldn't load pickup availability
| Typhoon 15HP 3PH Modular Dust Collector, NFPA664 CFM Rating | 20HP 3PH Modular Dust Collector | 25HP 3PH Modular Dust Collector | 5HP 3PH Straight Dust Collector | |
|---|---|---|---|---|
| Amps | 37A @ 220V | 49A @ 220V | 60A @ 220V | 1PH: 27A @ 220V 3PH: 17A @ 220V |
| Cfm | 5000 | 7500 | 10000 | 3075 |
| Dimensions | 112″ x 130″ x 50″ | 112″ x 156″ x 50″ | 112″ x 183″ x 50″ | 112" x 81" x 32" |
| Fan rpm | 1725 | 1725 | 27″ | 3450 |
| Fan size | 25″ | 26″ | 1725 | 13" |
| Filter-bags | 3 | 4 | 5 | 2 |
| Filter area | 99 | 132 | 165 | 66 |
| Horsepower | 15HP | 20HP | 25HP | 5HP |
| Inlet-size | 14″ | 16″ | 18″ | 10" |
| Phase | 3 | 3 | 3 | 1 or 3 |
| Storage capacity | 36 | 48 | 60 | 24 |
| Weight | 925 lbs | 1000 lbs | 1200 lbs | 425 lbs |
