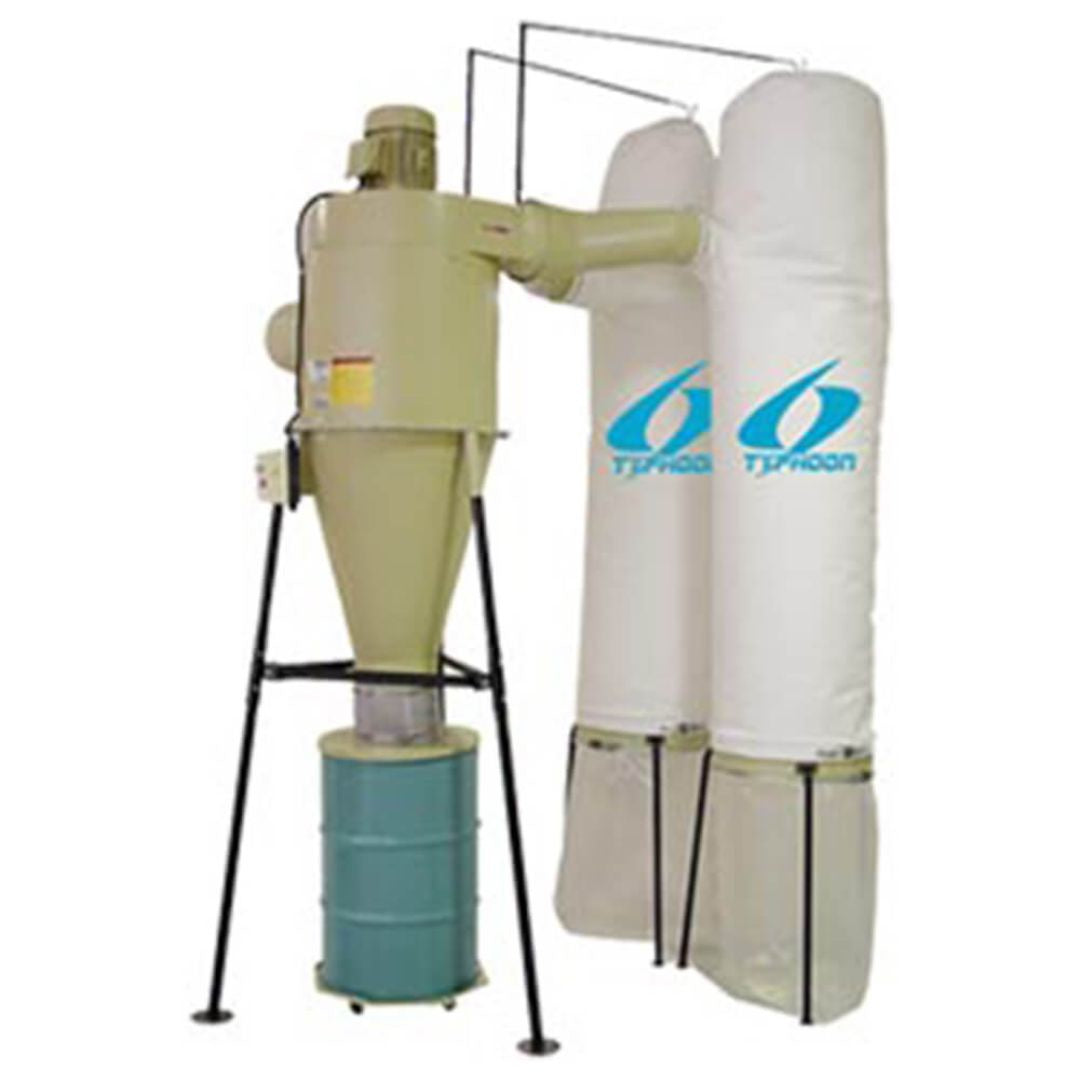

7.5HP 3PH Cyclone Dust Collector
7.5HP 3PH Cyclone Dust Collector
Regular price
$5,899.00
Regular price
Sale price
$5,899.00
Unit price
per
Exact shipping calculated after quote submission.
The DC-275 cyclone dust collector comes in single and three phase models with 2 1-micron filter bags. It features a 117 square foot filter area with 24 cubic feet of storage capacity measuring 140 inches tall by 120 inches wide by 50 inches deep. The single-phase dust collector is powered by a 7.5 horsepower Baldor motor has 38 amps at 220 volts while the three-phase dust collector is powered by a 7.5 horsepower TEFC motor has 20 amps at 220 volts. Drums not included. Magnetic starter included.
Model: DC-275.3
Couldn't load pickup availability
| 7.5HP 3PH Cyclone Dust Collector | 10HP 3PH Cyclone Dust Collector | 3HP 1PH Cyclone Dust Collector, 230V | 5HP 3PH Cyclone Dust Collector | |
|---|---|---|---|---|
| Amps | 1PH: 38A @ 220V 3PH: 20A @ 220V | 27A @ 220V | 15A @ 220V | 1PH: 27A @ 220V 3PH: 17A @ 220V |
| Cfm | 4850 | 6400 | 1785 | 2975 |
| Dimensions | 140" x 120" x 50" | 148″ x 128″ x 56″ | 123″ x 65″ x 42″ | 140″ x 110″ x 50″ |
| Fan rpm | 3450 | 3450 | 3450 | 3450 |
| Fan size | 14.75" | 16" | 13″ | 14.25″ |
| Filter-bags | 2 | 2 | 1 | 2 |
| Filter area | 117 | 117 | 37 | 59 |
| Horsepower | 7.5HP | 10HP | 3HP | 5HP |
| Impeller size | 14.75" | 16" | 13″ | 14-1/4″ |
| Inlet-size | 12" | 13" | 8″ | 10" |
| Motor | 1PH: BALDOR 7.5 HP 3PH: TEFC 7.5 HP | TEFC 10 HP | TEFC 3 HP | 1PH: BALDOR 5 HP 3PH: TEFC 5 HP |
| Phase | 1 or 3 | 3 | 1 | 1 or 3 |
| Static pressure | 13.5" | 16" | 10″ | 12″ |
| Storage capacity | 24 | 32 | 12.78 | 11 |
| Weight | 540 lbs | 750 lbs | 260 lbs | 440 lbs |
