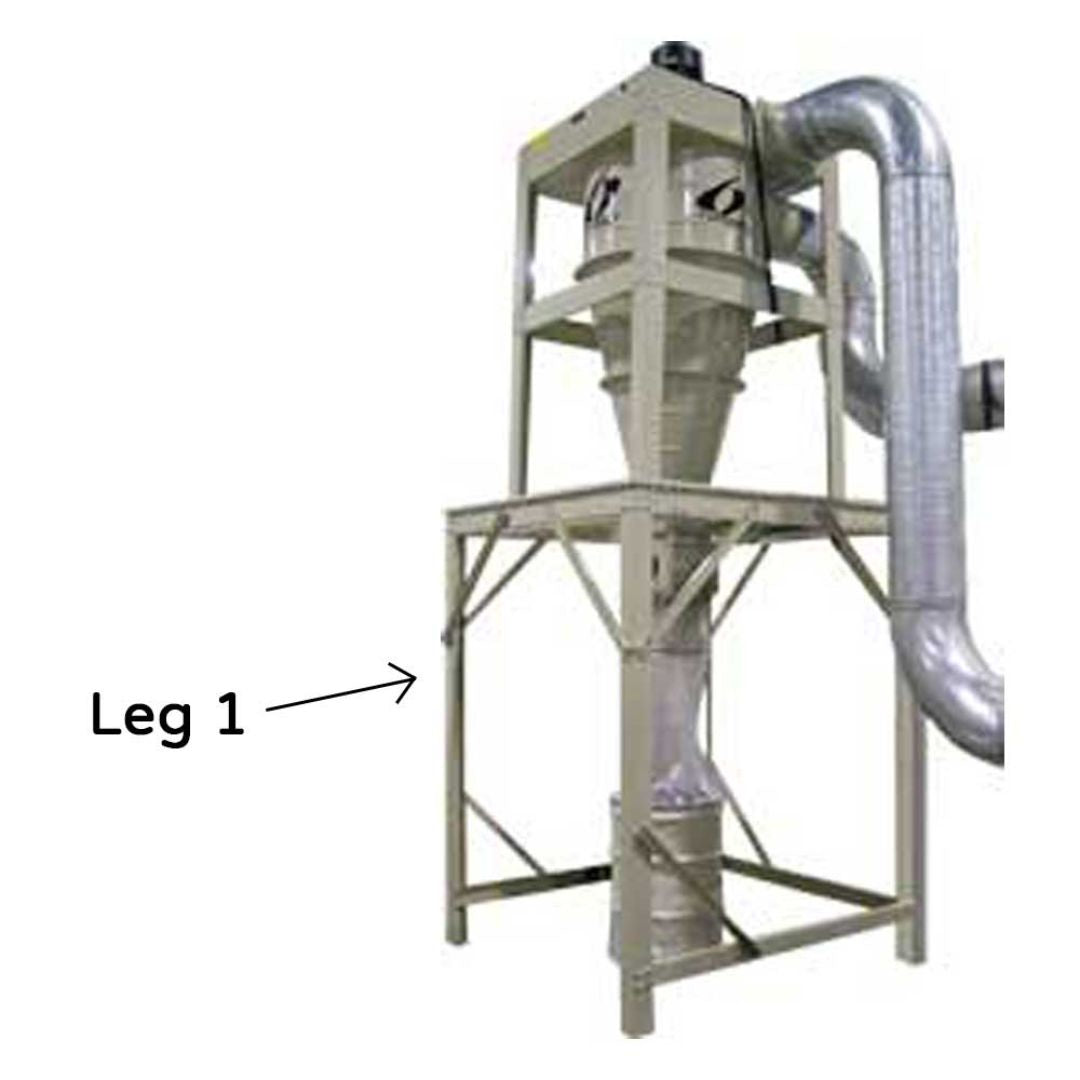

15HP 3PH Outdoor Cyclone Dust Collector with Optional High Capacity Rotary Airlock
15HP 3PH Outdoor Cyclone Dust Collector with Optional High Capacity Rotary Airlock
Regular price
$18,499.00
Regular price
Sale price
$18,499.00
Unit price
per
Exact shipping calculated after quote submission.
The Magnum Series cyclones feature a powered unit with rotary airlock and multiple stand configurations to accommodate a variety of height and dumpster dimensions. This series requires no bagging because all waste dumps from the rotary air lock, and there is no need to power down the unit while cleaning up waste. The DCY-1215 is a 3- phase outdoor cyclone dust collector equipped with 15 horsepower and 7600 CFM. Electronic controls must be protected from weather. Magnetic starter included.
Model: DCY-1215L1
Couldn't load pickup availability
| 15HP 3PH Outdoor Cyclone Dust Collector with Optional High Capacity Rotary Airlock | 20HP Outdoor Cyclone Dust Collector | 25HP 3PH Outdoor Cyclone Dust Collector | |
|---|---|---|---|
| Amps | 37A @ 230V 19A @ 460V | 49A @ 230V 25A @ 460V | 62A @ 230V 31A @ 460V |
| Cfm | 7600 | 8800 | 10500 |
| Chip dumping capacity | 10 CFM | 10 CFM | 10 CFM |
| Dimensions | 16′-3″ x 73.25″ x 73.25″ | 23′-11″ x 153.5″ x 98.5″ | 25′1″ x 153.5″ x 98.5″ |
| Drop size | 8" x 12" | 8" X 12" | 8" x 12" |
| Horsepower | 15HP | 20HP | 25HP |
| Inlet-size | 14" | 16" | 18" |
| Outlet size | 16" | 18" | 20" |
| Rotary airlock hp | 1/4 HP | 1/4 HP | 1/4 HP |
| Soft start | Yes | Yes | Yes |
| Weight | 2000 lbs | 2500 lbs | 2850 lbs |
