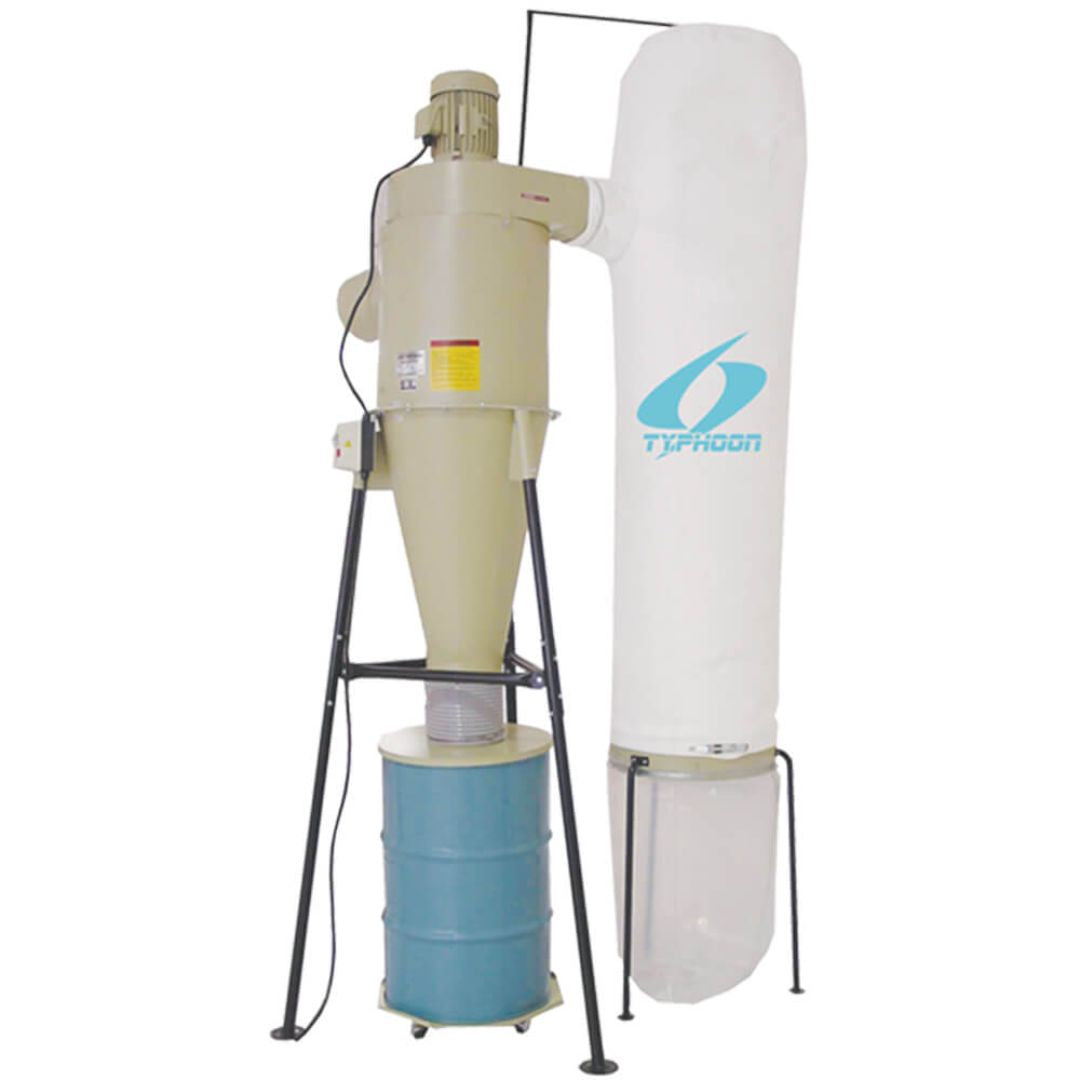

5HP 3PH Cyclone Dust Collector

5HP 3PH Cyclone Dust Collector

Regular price $3,999.00
Regular price Sale price $3,999.00
Sale Sold out
Exact shipping calculated after quote submission.
Model: DC-250.3
View full details
5HP 3PH Cyclone Dust Collector 10HP 3PH Cyclone Dust Collector 3HP 1PH Cyclone Dust Collector, 230V 7.5HP 3PH Cyclone Dust Collector
Amps 1PH: 27A @ 220V 3PH: 17A @ 220V 27A @ 220V 15A @ 220V 1PH: 38A @ 220V 3PH: 20A @ 220V
Cfm 2975 6400 1785 4850
Dimensions 140″ x 110″ x 50″ 148″ x 128″ x 56″ 123″ x 65″ x 42″ 140" x 120" x 50"
Fan rpm 3450 3450 3450 3450
Fan size 14.25″ 16" 13″ 14.75"
Filter-bags 2 2 1 2
Filter area 59 117 37 117
Horsepower 5HP 10HP 3HP 7.5HP
Impeller size 14-1/4″ 16" 13″ 14.75"
Inlet-size 10" 13" 8″ 12"
Motor 1PH: BALDOR 5 HP 3PH: TEFC 5 HP TEFC 10 HP TEFC 3 HP 1PH: BALDOR 7.5 HP 3PH: TEFC 7.5 HP
Phase 1 or 3 3 1 1 or 3
Static pressure 12″ 16" 10″ 13.5"
Storage capacity 11 32 12.78 24
Weight 440 lbs 750 lbs 260 lbs 540 lbs
