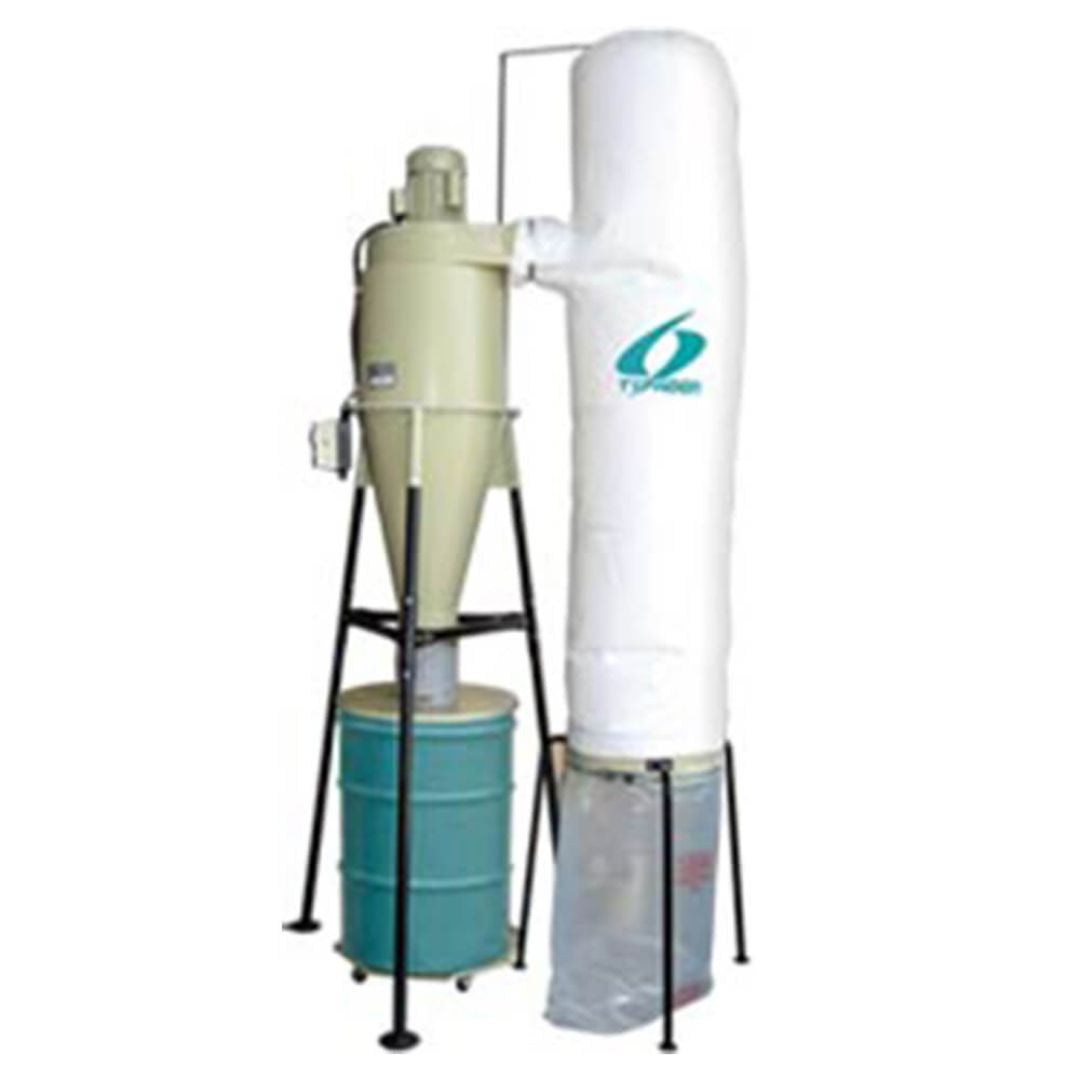

3HP 1PH Cyclone Dust Collector, 230V
3HP 1PH Cyclone Dust Collector, 230V
Regular price
$2,699.00
Regular price
Sale price
$2,699.00
Unit price
per
Exact shipping calculated after quote submission.
Model: DC-203
Couldn't load pickup availability
| 3HP 1PH Cyclone Dust Collector, 230V | 10HP 3PH Cyclone Dust Collector | 5HP 3PH Cyclone Dust Collector | 7.5HP 3PH Cyclone Dust Collector | |
|---|---|---|---|---|
| Amps | 15A @ 220V | 27A @ 220V | 1PH: 27A @ 220V 3PH: 17A @ 220V | 1PH: 38A @ 220V 3PH: 20A @ 220V |
| Cfm | 1785 | 6400 | 2975 | 4850 |
| Dimensions | 123″ x 65″ x 42″ | 148″ x 128″ x 56″ | 140″ x 110″ x 50″ | 140" x 120" x 50" |
| Fan rpm | 3450 | 3450 | 3450 | 3450 |
| Fan size | 13″ | 16" | 14.25″ | 14.75" |
| Filter-bags | 1 | 2 | 2 | 2 |
| Filter area | 37 | 117 | 59 | 117 |
| Horsepower | 3HP | 10HP | 5HP | 7.5HP |
| Impeller size | 13″ | 16" | 14-1/4″ | 14.75" |
| Inlet-size | 8″ | 13" | 10" | 12" |
| Motor | TEFC 3 HP | TEFC 10 HP | 1PH: BALDOR 5 HP 3PH: TEFC 5 HP | 1PH: BALDOR 7.5 HP 3PH: TEFC 7.5 HP |
| Phase | 1 | 3 | 1 or 3 | 1 or 3 |
| Static pressure | 10″ | 16" | 12″ | 13.5" |
| Storage capacity | 12.78 | 32 | 11 | 24 |
| Weight | 260 lbs | 750 lbs | 440 lbs | 540 lbs |
