5HP 3PH Straight Dust Collector
5HP 3PH Straight Dust Collector
Regular price
$3,899.00
Regular price
Sale price
$3,899.00
Unit price
per
Exact shipping calculated after quote submission.

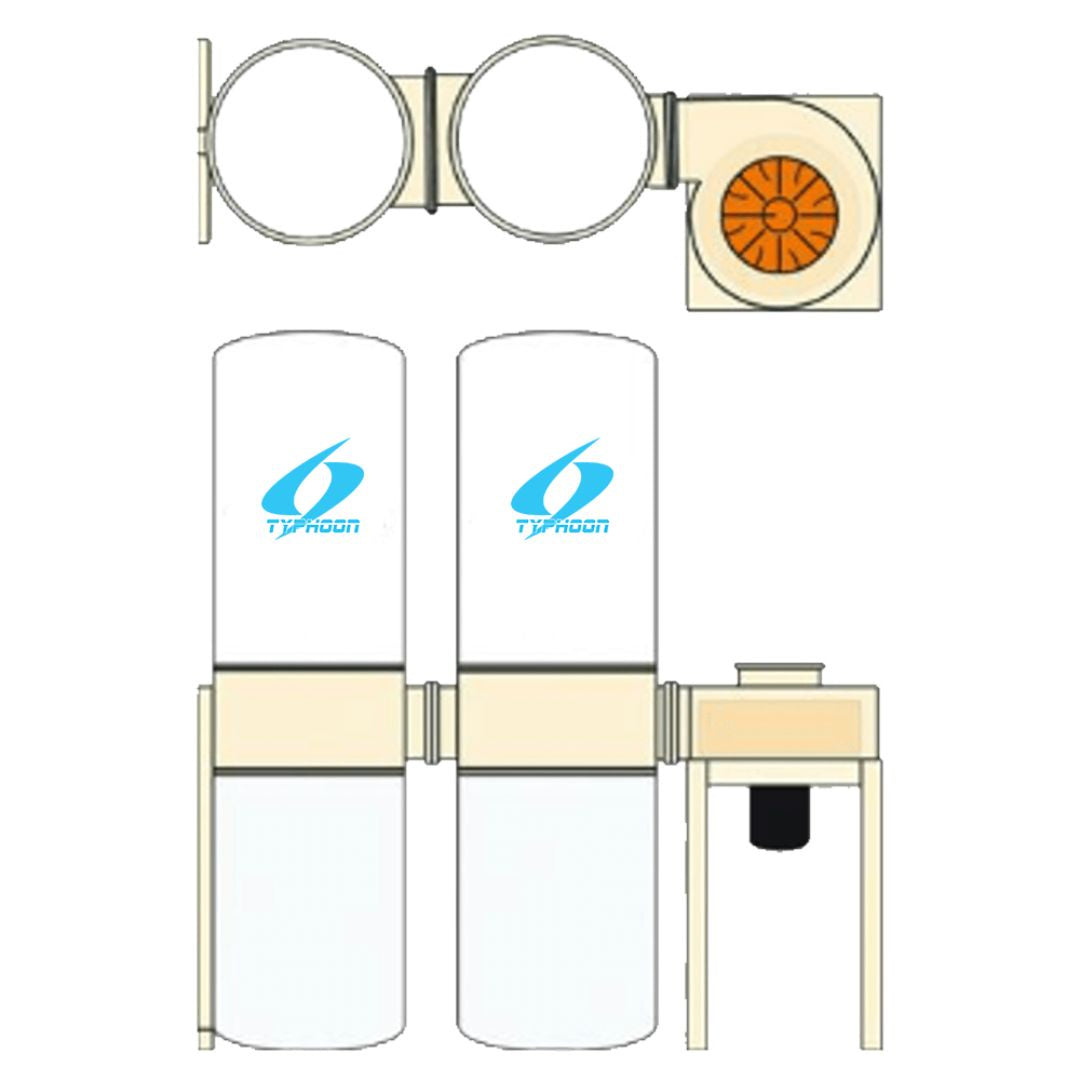

The DC-3050 modular dust collector comes in three phase models. The three-phase dust collector has 17 amps at 220 volts. Modular ring design enables increased storage and filter capacity. Magnetic starter included. Please refer to the comparison chart below for specifications on all modular dust collector models.
Model: DC-3050.3
Couldn't load pickup availability
| 5HP 3PH Straight Dust Collector | 20HP 3PH Modular Dust Collector | 25HP 3PH Modular Dust Collector | |
|---|---|---|---|
| Amps | 1PH: 27A @ 220V 3PH: 17A @ 220V | 49A @ 220V | 60A @ 220V |
| Cfm | 3075 | 7500 | 10000 |
| Dimensions | 112" x 81" x 32" | 112″ x 156″ x 50″ | 112″ x 183″ x 50″ |
| Fan rpm | 3450 | 1725 | 27″ |
| Fan size | 13" | 26″ | 1725 |
| Filter-bags | 2 | 4 | 5 |
| Filter area | 66 | 132 | 165 |
| Horsepower | 5HP | 20HP | 25HP |
| Inlet-size | 10" | 16″ | 18″ |
| Phase | 1 or 3 | 3 | 3 |
| Storage capacity | 24 | 48 | 60 |
| Weight | 425 lbs | 1000 lbs | 1200 lbs |
